Complete set for WiFi connectivity on board

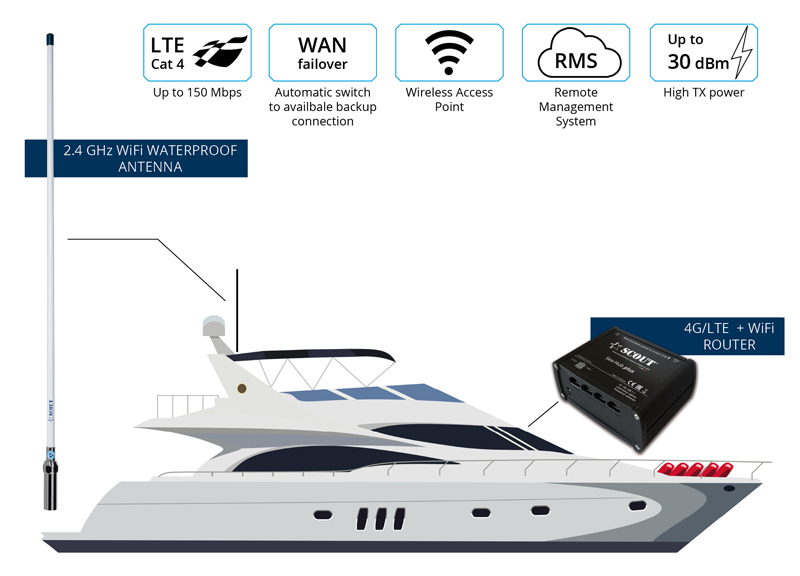

WiFi onBoard in a complete all-in-one system that allows Internet connectivity from nearby WiFi hotspots and to share it wirelessly through the built-in hotspot or through Ethernet. The hotspot allows up to 50 WiFi users simultaneous connections and offers the possibility to assign a private password to restrict the access to unknown users.
WiFi onBoard can be completely managed wirelessly with a smartphone, tablet or laptop through a web browser interface. No additional cables or drivers are required.

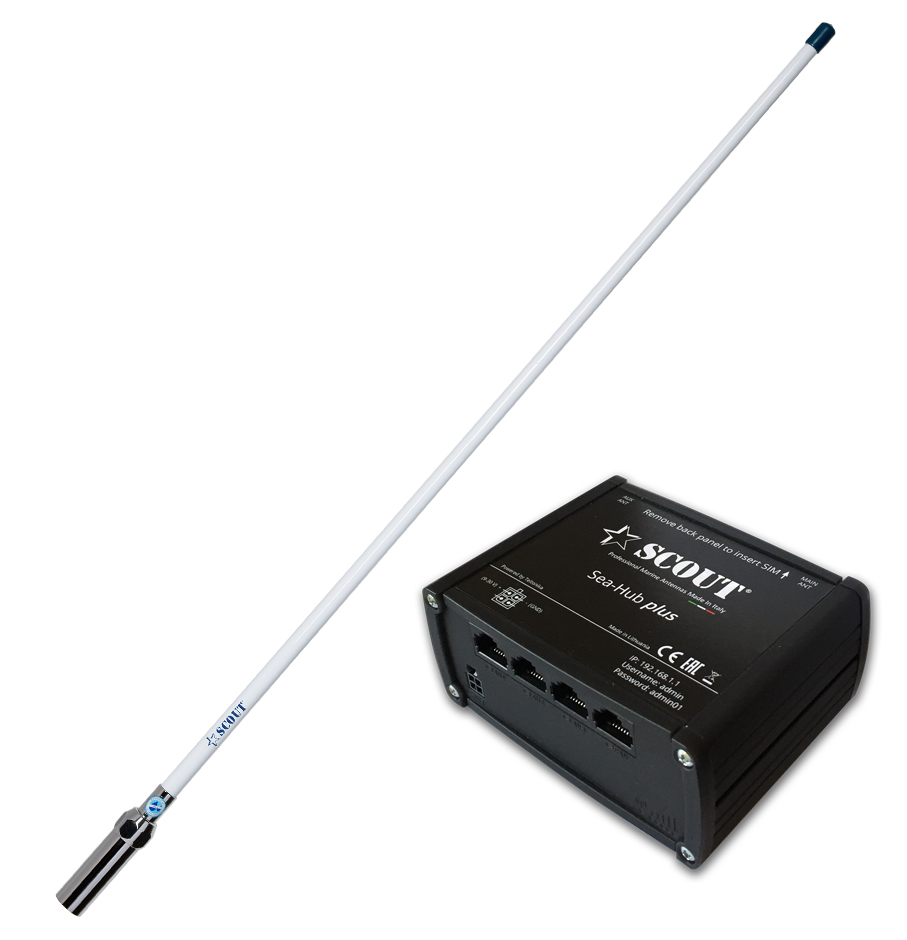

WiFi onBoard includes a professional high-speed router and a high power 10dB external waterproof WiFi antenna. It doesn’t require a SIM card.
Router model Sea-Hub plus is a rugged and durable professional 4G/LTE Dual SIM cellular router with advanced WiFi, Ethernet and industrial grade networking functionality support. Quick to deploy and easy to manage. The router is equipped with Dual-SIM, 4 x Ethernet interfaces and WiFi. Device is designed as Main/Backup Internet source and can guarantee reliable Internet connection with high data throughput and data redundancy. It comes with RutOS software and security features such as multiple VPN services, Firewall, Hotspot, Auto Failover, Load Balancing, SMS control and RMS support (Remote Management System).
RMS is a client-server based system, which provides the possibility to access the router remotely even without the use of a public IP address. In this way it’s quite easy to track the history of various status changes such as device temperature, mobile signal quality and data usage, making sure that no information is lost over time.
For additional info regarding the router please read the following documentation: Router technical specifications
For additional info regarding the WiFi antenna please visit the specific page on our website: read more
Included:
| 1 x 4G/LTE + WiFi Router |
| 1 x WiFi antenna 10 dB |
| 1 x EU power supply 9 VDC |
Ordering:
| Item | WiFi onBoard |
| Code | PF AN NWIFI12 |
Cables, connectors and mounts to be purchased separately according to the installation type. Please see Accessories list below for your reference with links to the product pages.
Accessories:
| Item | Description | Page |
| MA-1 | Router DIN rail kit | Link |
| MA-2 | Router compact DIN rail kit | Link |
| MA-3 | Router surface mounting kit | Link |
| PI-3 | Cigarette lighter power supply for Sea-Hub plus | Link |
| PI-4 | Power cable with 4-way screw terminal for Sea-Hub plus | Link |
| PA-44 | Adaptor 1”x14 thread 90mm (3.5”) | Link |
| PA-40 | Stainless steel marine mount | Link |
| PA-30 | Four way stainless steel ratchet mount | Link |
| CA-1 | Pigtail 15 cm RG-58 N female/SMA male | Link |
| CA-2 | Pigtail 15 cm RG-58 N female/SMA male RP | Link |
| CA-3 | Cable type LMR-400 N male/N male 1 m | Link |
| CA-4 | Cable type LMR-400 N male/N male 3 m | Link |
| CA-5 | Cable type LMR-400 N male/N male 5 m | Link |
| CA-6 | Cable type LMR-400 N male/N male 7 m | Link |
| CA-7 | Cable type LMR-400 N male/N male 10 m | Link |
| CA-8 | Cable type LMR-400 N male/N male 15 m | Link |
Additional documentation regarding the system can be downloaded following the links below.
Download:
| Quick start guide |
| Router technical specifications |
| Brochure |
| Powering options |
| Installation scheme |
