4G onBoard Compact Basic Black

 4G/WiFi Connectivity System with single SIM

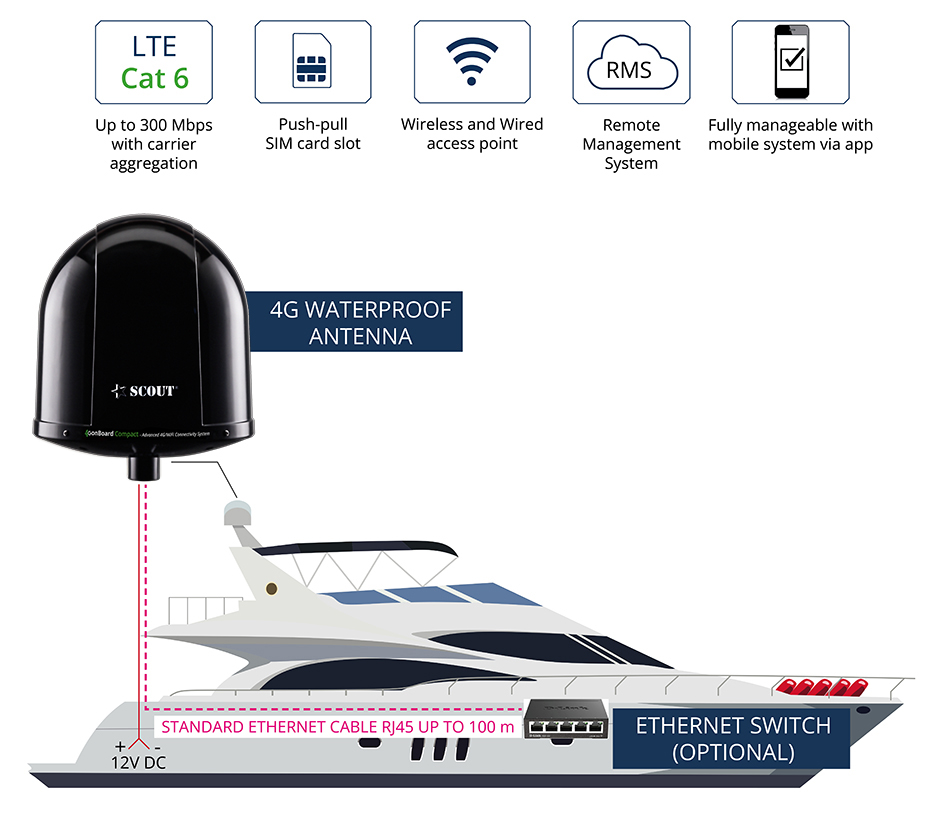

The 4G onBoard Compact Basic is the all-in-one Internet system for boats that provides 4G connectivity for up to 150 users simultaneously. The compact dome of 25 cm in diameter provides both wireless and wired Internet signal and allows the insertion of one ot one SIM card directly in the SIM slot that is locatd on the dome and protected by an IP 67 cap. Moreover, the dome is equipped with a LAN CAT6 Ethernet connector that can be used to set up a wired network inside the boat (suggested for larger boats and aluminium boats).

The SIM card is inserted simply via a push-pull door positioned on the bottom of the dome with IP67 degree of protection against atmospheric agents. The format of the SIM card to be inserted is Nano SIM type.

The 4G onBoard Compact Basic equips 2 antennas 4G, MIMO technology, carrier aggregation, Cat 6 up to 300 Mbps, WiFi at 2.4 GHz and it’s managed in wireless mode by a user-friendly app available both for iOS (Apple) and Android (or in wired mode through the LAN Ethernet cable). The 4G onBoard Compact Basic is a plug&play system, it only requires a 12V power cable for operation (included).

Thanks to the 2 powerful 4G antennas contained inside the dome, the 4G onBoard Compact Basic allows you to stay connected to the 4G network up to 20 miles away from the coast. In the event of a 4G signal failure, the system is also fully backwards compatible with 3G technology.

With the 4G onBoard Compact Basic the boat turns into a professional Internet connectivity centre, thanks to the dedicated high-speed wireless network and an wired network (LAN 100 Mbps). All the new-generation electronic devices can be connected to the Internet network: chartplotters, radios, smart TVs, IP cameras, tablets, smartphones, etc. The 5G connection speed allows easy HD streaming on platforms such as Netflix, Amazon Prime, Disney Plus, as well as music streaming services such as Spotify and many others.

Both configuration and remote control of the system can be managed with a new user-friendly app available for iOS (Apple) and Android. The 4G onBoard Compact Basic is particularly suitable for installations in easily accessible positions and combines extreme flexibility with high ease of installation.

Available also in white color: 4G onBoard Compact Basic

Content:

Ordering:

Accessories and antenna mounts are sold separately. Please check the accessories list below for your reference with links to the product pages.

Accessories:
