QUICK 4


3 db VHF fibergless antenna 1,00 m (3.3’) length – QuickFit



QuickFit is the brand-new line of ready-to-install marine antennas by Scout, that do not require the installation of RF connectors, easy to remove and totally waterproof thanks to the Scout original foam injection technology.

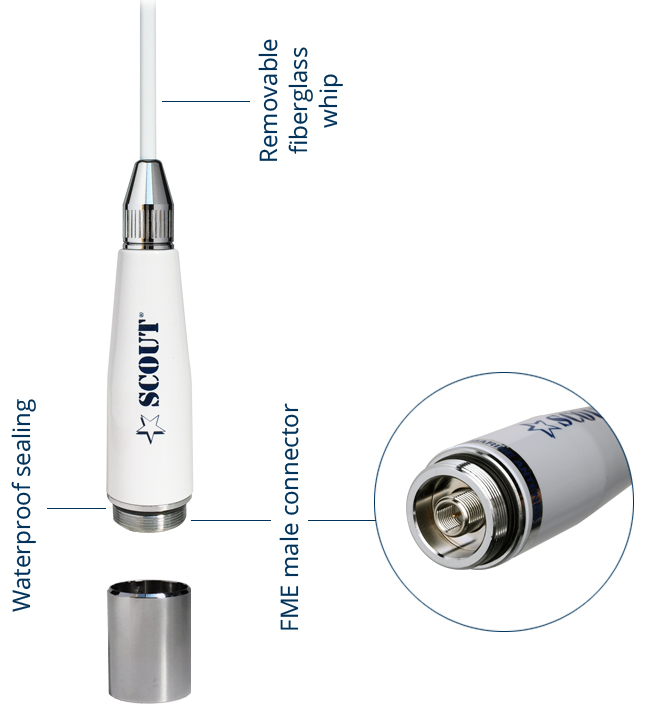

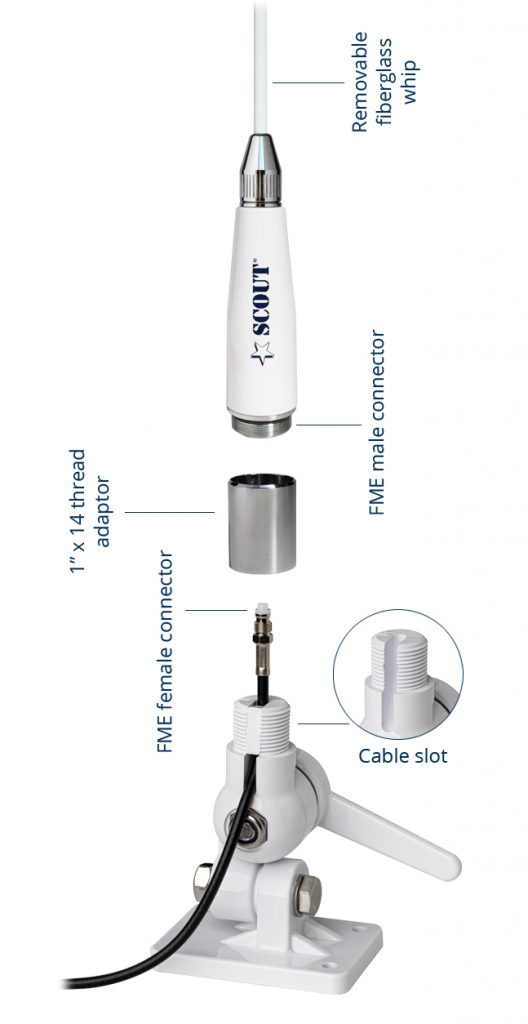

The QUICK 4 antenna has been designed to be easily installed on every type of boat, thanks to its unique technical features: the white fiberglass rod UV-inhibited can be easily removed by hand whenever not needed, the FME male connector for a simple connection of the 5 m coaxial cable with pre-installed FME connectors (supplied with the antenna), the stainless steel 1” x 14 thread adaptor to enable a fast installation of the antenna on any kind of deck mount, rail mount and bracket.



The antenna is distinguished by an extremely robust construction and by high performance both in transmission and reception.



Technical specifications:

 Frequency  156-162 MHz
 Impedance  50 ohm
 Electrical length  1/2 λ
 V.S.W.R.  < 1,5:1
 Polarization  Vertical
 Gain  3 dB
 Max power input  50 W
 DC ground  Yes
 Whip material  Fiberglass
 Connector  FME Male
 Mounting  1″ x 14 thread adaptor

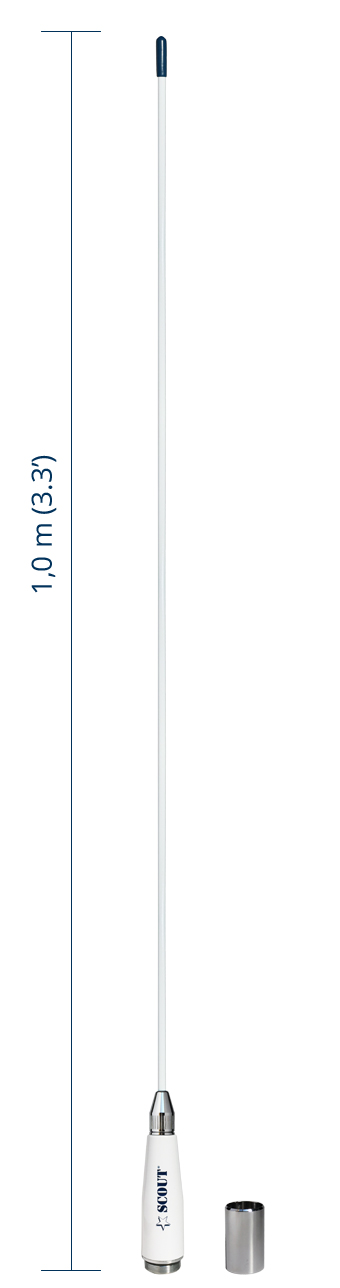

 Length  1,0 m (3.3′)
 Weight  0,40 kilo
 Code  PF AN NVHF00038



Content:

 1 x Antenna
 1 x 1″ x 14 thread adaptor
 1 x 5m RG-58 coax cable with FME Female connectors
 1 x Adaptor FME Male/PL-259 Male
