QUICK 1 Black Edition

3 db VHF fiberglass antenna 1,0 m (3.3’) length – QuickFit – Black


QuickFit is the brand-new line of ready-to-install marine antennas by Scout, that do not require the installation of RF connectors, easy to remove and totally waterproof thanks to the Scout original foam injection technology.

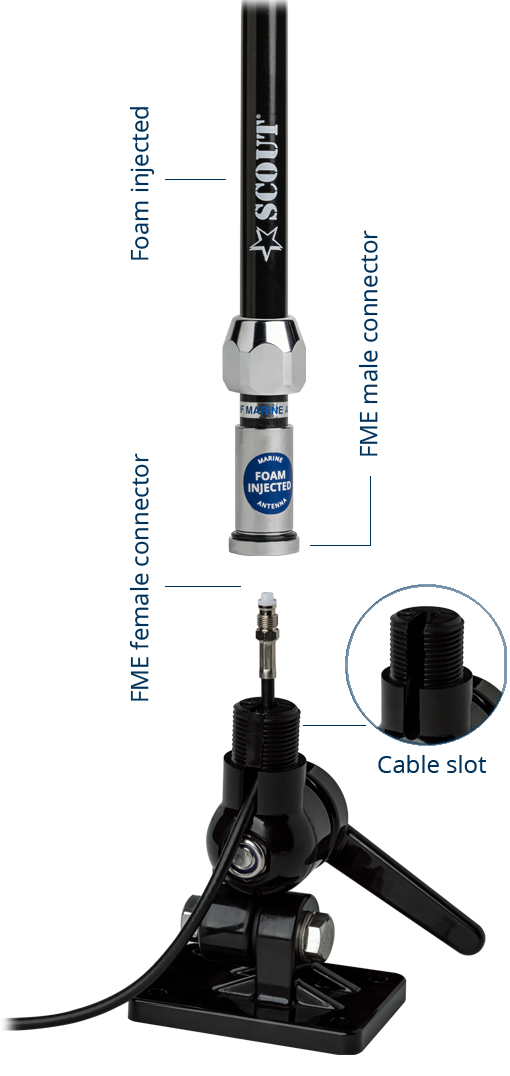

QuickFit antennas are built with FME type termination, they come with coax cables with pre-installed connectors and do not require any specific equipment or tools to make the installation on the boat, either on deck, rail or mast.Installation can be carried out easily as no technical skills are required.


QUICK 1 Black Edtion guarantees the same performance of a 150 cm length VHF antenna. It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. The black painting fits perfectly with black boats, grey boats, and with metal/alluminium finishings. A perfect antenna for its design and construction suitable for any type of motorboat.


Technical specifications:

 Frequency  156-162 MHz
 Impedance  50 ohm
 Electrical length  1/2 λ
 V.S.W.R.  < 1,5:1
 Polarization  Vertical
 Gain  3 dB
 Max power input  50 W
 DC ground  Yes
 Whip material  Fiberglass
 Connector  FME Male
 Mounting  1″ x 14 thread adaptor

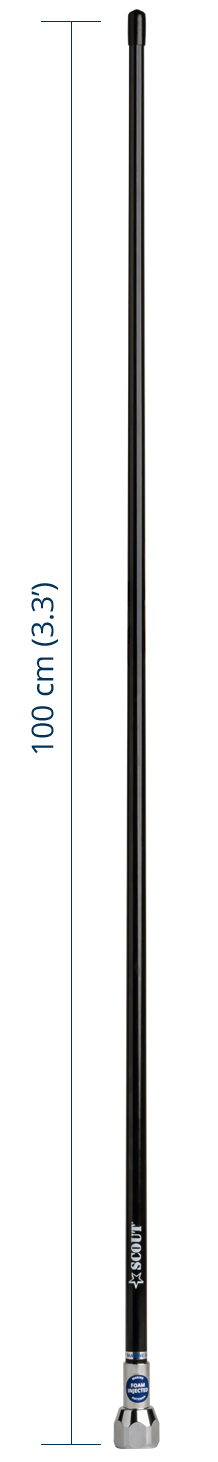

 Length  1,0 m (3.3′)
 Weight  0,47 kilo
 Code  PF AN NVHF00035



 1 x Antenna
 1 x 5m RG-58 coax cable with FME Female connectors
 1 x Adaptor FME Male/PL-259 Male
