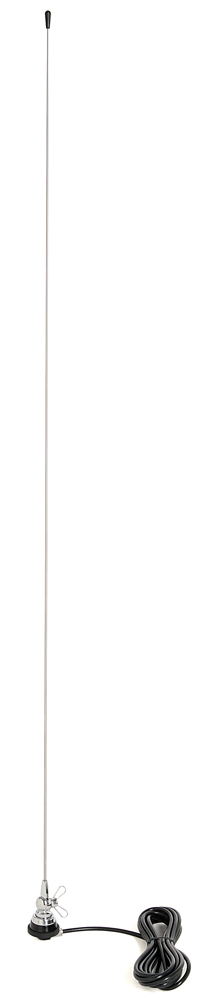

1/4 λ VHF 70 MHz conical stainless steel Antenna


The KT-70 is 1/4 λ VHF mobile antenna designed to work at 70-80 MHz. Its resistant and flexible whip combined with the care in the assebly make the KT-70 an extremely reliable antenna.


  • 1/4 λ
  • Stainless steel whip
  • 4,5 m RG 58 CU MIL coaxial cable


Technical specifications:

 Frequency  70-80 MHz
 Impedance  50 ohm
 Electrical length  1/4 λ
 V.S.W.R.  1,5:1 or less
 Polarization  Vertical
 Gain  0 dB
 Max power in  100 W
 Bandwidth  5 MHz
 Whip material  Stainless steel
 Mount material  Chrome brass
 Coaxial cable  4,5 m RG 58 CU MIL
 Mounting hole  d. 22 mm
 Length  106 cm
Code PF AN VVHF005
