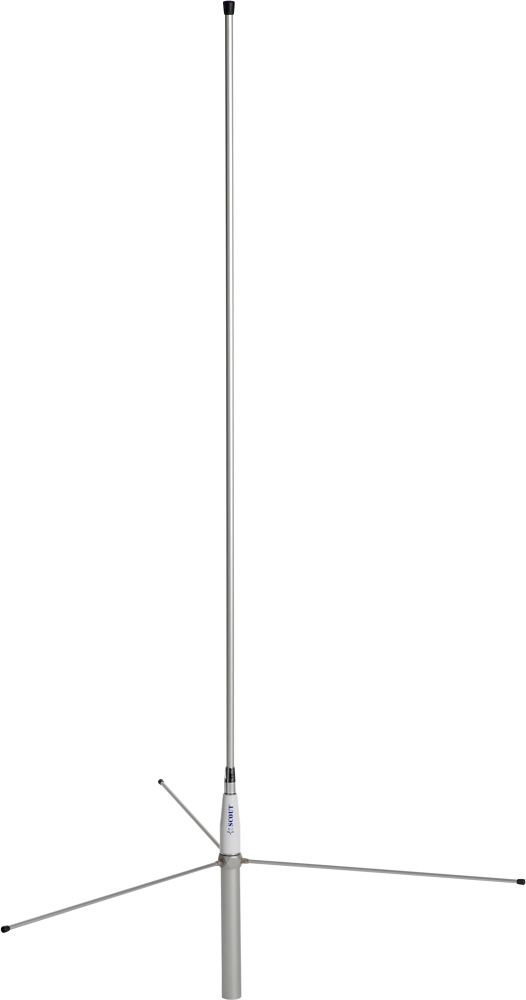

GP 5/8 λ anodized aluminium Antenna
The KT-3 is expressly dedicated to professionals. The three radials generate a ground plane that allows you to communicate even in the most difficult situations. The accuracy in the assembly makes this antenna perfectly sealed and resistant in every type of weather condition. Designed for installation on extension mast.
- 5/8 λ
- Anodized aluminium whip
- SO 239 connector
Technical specifications:
| Frequency | 145-175 MHz |
| Impedance | 50 ohm |
| Electrical length | 5/8 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 4 dB ISO |
| Max power in | 100 W |
| Bandwidth | 3 MHz |
| Whip material | Anodized aluminium |
| Mount material | Anodized aluminium |
| Connector | SO 239 |
| Mounting | 1 x 14″ thread |
| Length | 1 m |
| Weight | 450 gr |
| Code | PF AN VUHF003 |
