1/2 λ VHF Antenna N connector

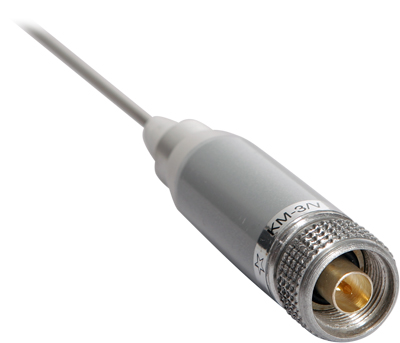

The KM-3V/N antenna is specifically designed to be installed on top of alarm boxes or on a stand-off bracket, to transmit and receive the alarm signal.
Quick and simple to install with its N connector. The antenna doesn’t require a ground plane, therefore it could be used for many kinds of applications.
- N male connector
- 1/2 λ
- Stainless steel whip
- Ground plane not required
Technical specifications:
| Frequency | 154-174 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | <1,5:1 |
| Polarization | Vertical |
| Gain | 0 dB over 1/2 λ |
| Max power in | 100 W |
| Bandwidth | 3 MHz |
| Whip material | Stainless steel |
| Dimensions | d. 19 x 97 cm |
| Weight | 130 gr |
| Connector | N male |
| Code | PF AN SVHF001 |
