1/2 λ UHF Antenna PL connector
The KM-3U/PL antenna is specifically designed to be installed on top of alarm boxes or on a stand-off bracket, to transmit and receive the alarm signal.
Quick and simple to install with its PL connector. The antenna doesn’t require a ground plane, therefore it could be used for many kinds of applications.

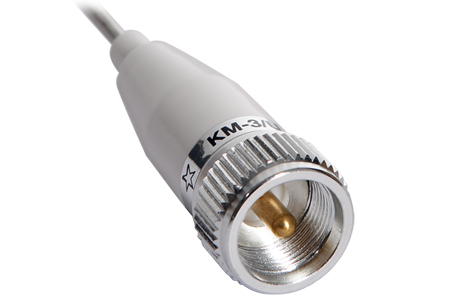

- PL male connector
- 1/4 λ
- Stainless steel whip
- Ground plane not required
Technical specifications:
| Frequency | 450-470 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | <1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB ISO |
| Max power in | 100 W |
| Bandwidth | 20 MHz |
| Whip material | Stainless steel |
| Dimensions | d. 20 x 38 cm |
| Weight | 76 gr |
| Connector | PL male |
| Code | PF AN SUHF002 |
