3 db VHF fiberglass antenna 0,9 m (3′) length – complete set
The KM-3F antenna is developed especially for sailing boats. It combines lightness and flexibility with an extreme resistance to atmospheric agents. Its elegant style fits perfectly with the boat design. The antenna is supplied together with a 3mm thick coated aluminium mounting bracket, that makes the installation quick and stable.
The KM-3F/20mKIT includes a KM-3F antenna, 20m (65′) RG 58 cable and two PL-259 male connectors for RG 58, for a quick installation on board.
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Fiberglass |
| Connector | SO 239 |
| Mounting | Coated aluminium bracket |
| Length | 0,9 m (3′) |
| Weight | 0,23 kilo |
| Code | PF AN NVHF00016 |

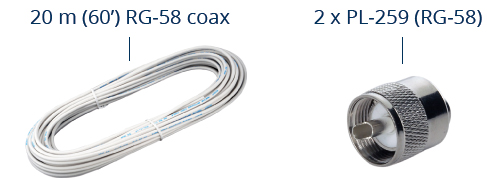

Content:
| 1 x Antenna |
| 1 x Coated aluminium bracket |
| 1 x RG-58 CU MIL coax cable 20 m (65′) |
| 2 x PL-259 (RG-58) male connector twist-on |
