3 db VHF stainless steel antenna 1,0 m (3.3′) length – complete set
The KM-3A antenna is developed for sailing boats. It combines lightness and flexibility due to the quality stainless steel whip. Its elegant style fits perfectly with the boat design. The antenna is supplied together with a 3mm thick coated aluminium bracket, that makes the installation quick and stable.
The KM-3A/20mKIT includes a KM-3A antenna, 20m (65′) RG 58 cable and two PL-259 male connectors for RG 58, for a quick installation on board.
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Stainless Steel |
| Connector | SO 239 |
| Mounting | Coated aluminium bracket |
| Length | 1,0 m (3.3′) |
| Weight | 0,23 kilo |
Content:
| 1 x Antenna |
| 1 x Coated aluminium bracket |

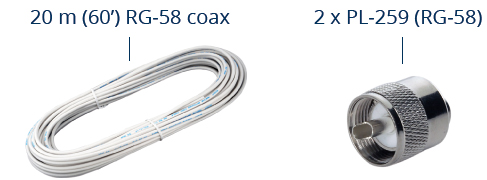

| 1 x RG-58 CU MIL coax cable 20 m (65′) |
| 2 x PL-259 (RG-58) male connector twist-on |
Download:
| SWR – Return loss testing | Link to document |
