3 db VHF stainless steel antenna 1,0 m (3.3′) length
The KM-3A antenna is developed for sailing boats. It combines lightness and flexibility due to the quality stainless steel whip. Its elegant style fits perfectly with the boat design.
The antenna is supplied together with a 3mm thick coated aluminium bracket, that makes the installation quick and stable.
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |

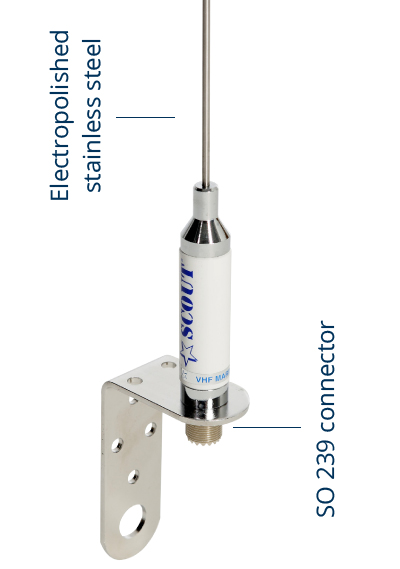

| Whip material | Stainless Steel |
| Connector | SO 239 |
| Mounting | Coated aluminium bracket |

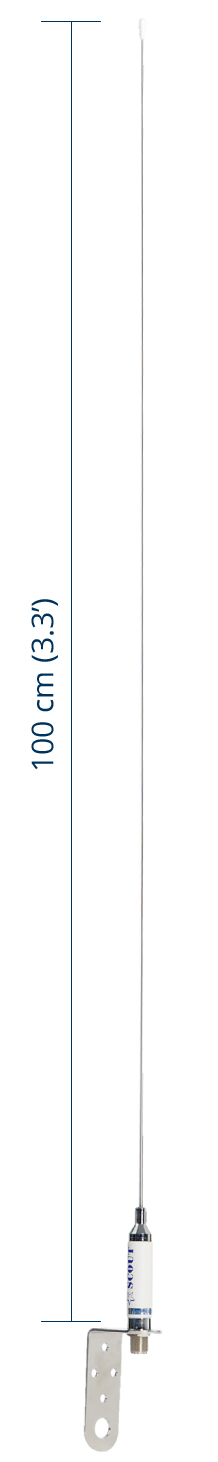

| Length | 1,0 m (3.3′) |
| Weight | 0,23 kilo |
| Code | PF AN NVHF00012 |
Content:
| 1 x Antenna |
| 1 x Coated aluminium bracket |
Download:
| SWR – Return loss testing | Link to document |
