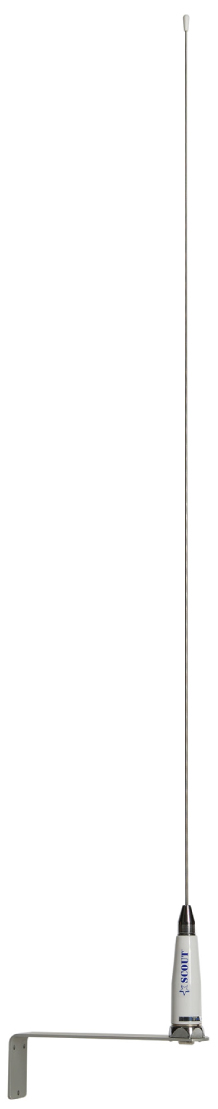

KM-32


1/2 λ VHF Antenna with bracket



The KM-32 is designed to be set outside, wall mounted. Easy installation with the aluminium bracket supplied with the antenna.

Its derivation from the marine sector guarantees a perfect sealing and a very good resistance to atmospheric agents. With SO 239 connector. It doesn’t require a ground plane.



  • 1/2 λ
  • Stainless steel whip
  • Ground plane not required
  • 20 cm anodized aluminium bracket



Technical specifications:

 Frequency  154-174 MHz
 Impedance  50 ohm
 Electrical length  1/2 λ
 V.S.W.R.  <1,5:1
 Polarization  Vertical
 Gain  3 dB
 Max power in  50 W
 Bandwidth  3 MHz
 Whip material  Stainless steel
 Dimensions  110 cm
 Weight  250 gr
