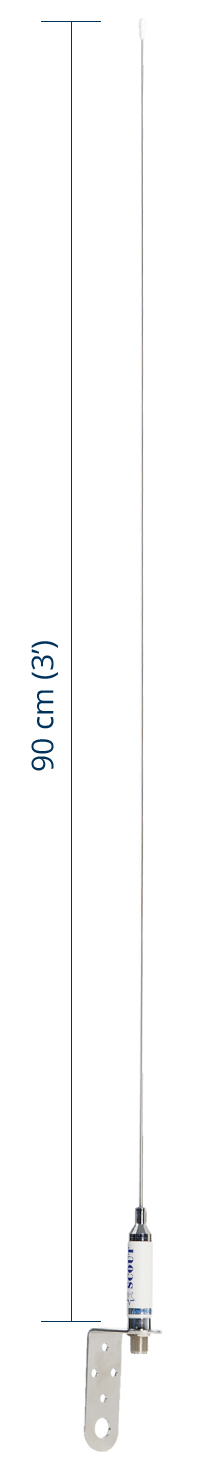

3 db AIS stainless steel antenna 0,9 m (3′) length
The Automatic Identification System (AIS) is an automated tracking system used on ships and by Vessel Traffic Services (VTS) for identifying and locating vessels by electronically exchanging data with other nearby ships and VTS stations.
AIS transponders use two different frequencies, VHF maritime channels 87B (161.975 MHz) and 88B (162.025 MHz). The KM-30A is specifically designed for sailing boats and tuned on the AIS frequencies.
It combines lightness and flexibility due to the quality stainless steel whip. The antenna is supplied together with a 3 mm thick stainless steel mounting bracket, for an easy and and stable installation on mast.

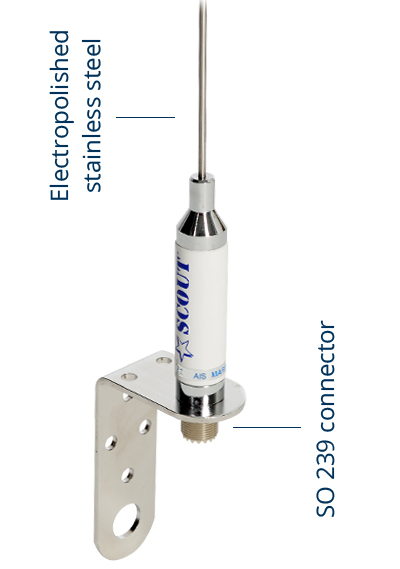

- Electropolished stainless steel whip
- Extra flexible
- SO 239 waterproof connector
- Mounting bracket supplied with the antenna
Specifiche tecniche:
| Frequency | 161,975-162,025 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Stainless Steel |
| Connector | SO 239 |
| Mounting | Stainless steel bracket |
| Length | 0,9 m (3.3′) |
| Weight | 0,23 kilo |
| Code | PF AN NAIS002 |
