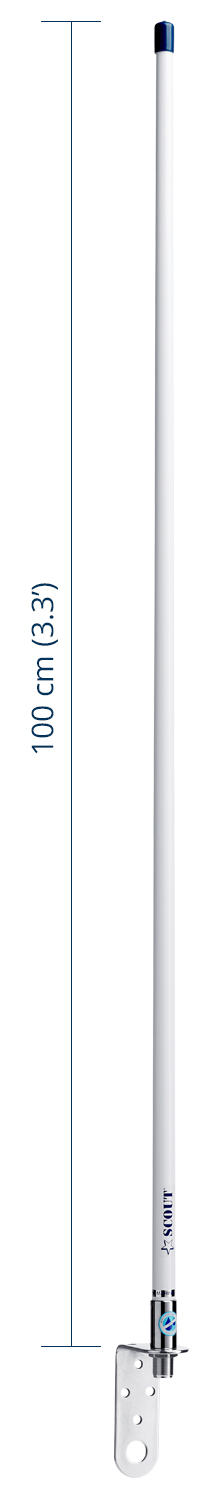

3 db VHF fiberglass antenna 1,0 m (3.3′) length

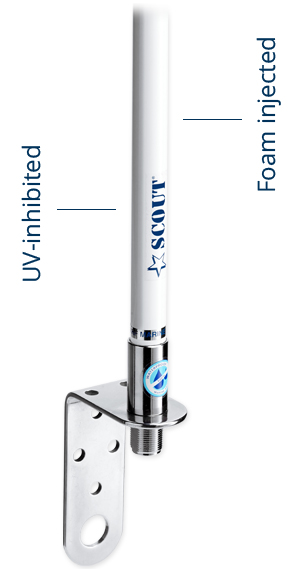

The KM-3 is a masthead antenna with high performance and great robustness. It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with high gloss anti-UV filter to prevent color deterioration.

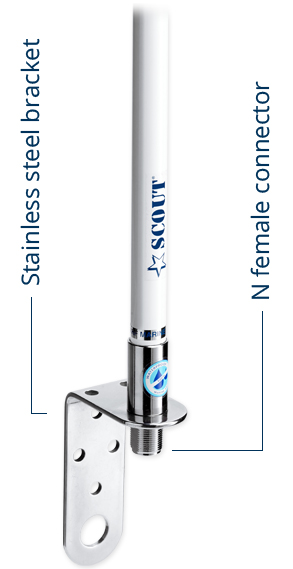

The KM-3 is equipped with N female connector, to optimize the signal transmission quality. It’s supplied together with a heavy duty 3 mm thick electropolished stainless steel bracket, that guarantees a perfect and stable masthead installation. Don’t be fooled by its length, with only 100 cm the KM-3 gives the same performance of its 1,5 m big sister (KS-22) thanks to a special tuning of its inner electrical system.
- Anti-UV high gloss finish
- Short size, high performance
- Mounting bracket supplied with the antenna
- 100% foam injected – waterproof antenna
Technical specifications:
Frequency | 156-162 MHz |
Impedance | 50 ohm |
Electrical length | 1/2 λ |
V.S.W.R. | < 1,5:1 |
Polarization | Vertical |
Gain | 3 dB |
Max power input | 50 W |
DC ground | Yes |
Whip material | Fiberglass |
Connector | N Female |
Mounting | Stainless steel bracket |
Length | 1,0 m (3.3′) |
Weight | 0,30 kilo |
Code | PF AN NVHF00011 |
