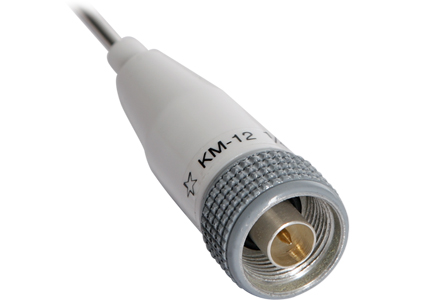

1/4 λ VHF Antenna N connector
The KM-12/N antenna is specifically designed to be installed on top of alarm boxes to transmit and receive the alarm signal.
Quick and simple to install with its N connector. The antenna requires a ground plane.
- N male connector
- 1/4 λ
- Stainless steel whip
Technical specifications:
Frequency | 154-174 MHz |
Impedance | 50 ohm |
Electrical length | 1/4 λ |
V.S.W.R. | <1,5:1 |
Polarization | Vertical |
Gain | 0 dB |
Max power in | 50 W |
Bandwidth | 20 MHz |
Whip material | Stainless steel |
Dimensions | d. 20 x 46 cm |
Weight | 75 gr |
Connector | N male |
Code | PF AN SVHF003 |
