1/4 λ VHF DC ground Antenna N connector
The KM-12/N-C is specifically designed to be installed on top of alarm boxes with a detection system for antenna removal. Quick and simple to install with its N connector. It requires a ground plane.
Quick and simple to install with its N connector. It requires a ground plane.

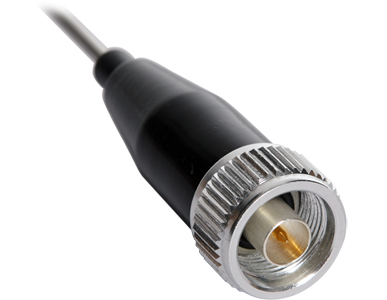

- N male connector
- 1/4 λ
- Stainless steel whip
- DC Ground
Technical specifications:
| Frequency | 154-174 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/4 λ |
| V.S.W.R. | <1,5:1 |
| Polarization | Vertical |
| Gain | 0 dB |
| Max power in | 50 W |
| Bandwidth | 20 MHz |
| Whip material | Stainless steel |
| Dimensions | d. 20 x 44 cm |
| Weight | 75 gr |
| Connector | N male |
| Code | PF AN SVHF005 |
