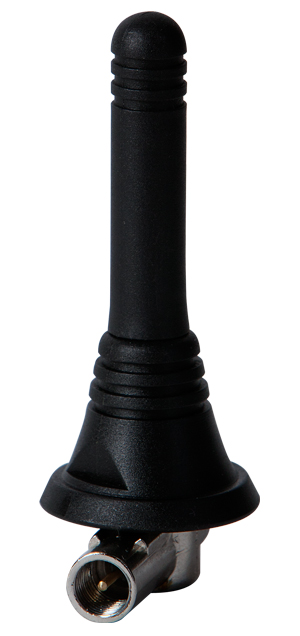

GSM Antenna 900 MHz – 2.1 GHz

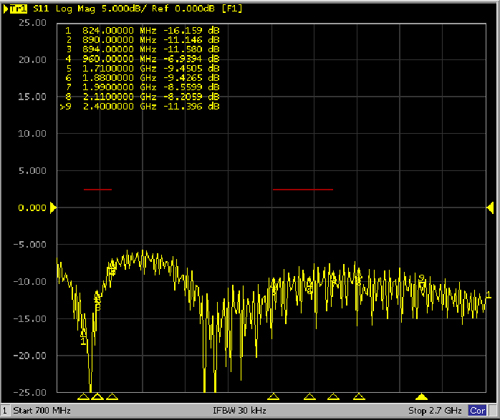

Measurement – Log mag:

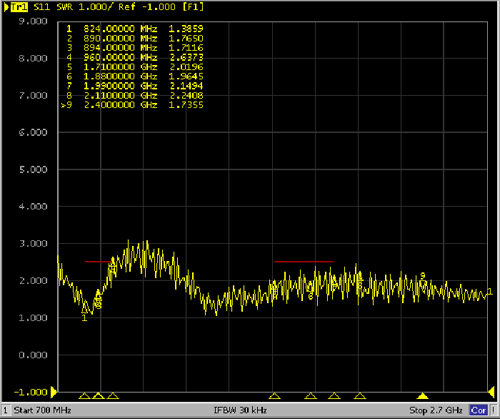

Measurement – VSWR:
Technical specification:
| Frequency | AMPS (824-894 MHz) GSM (900 MHz) DCS (1800 MHz) PCS (1900 MHz) 3G (UMTS 2.1 GHz) |
| Impedance | 50 Ohm |
| Gain | 0 dBi Max |
| V.S.W.R. | <2:1 |
| Polarization | Vertical |
| Operating temperature | -40°C to +85°C |
| Code | PF AN SGSM01 |
Connection specification:
| Connector | FME male |
Body mount:
| Material | ABS |

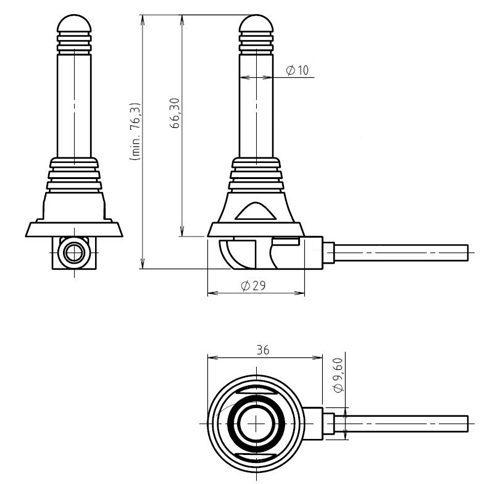

| Dimensions | 29mm x 76mm(h) |
| Weight | 50 g |
