VHF fiberglass antenna 0,18 m (7″) length – complete set

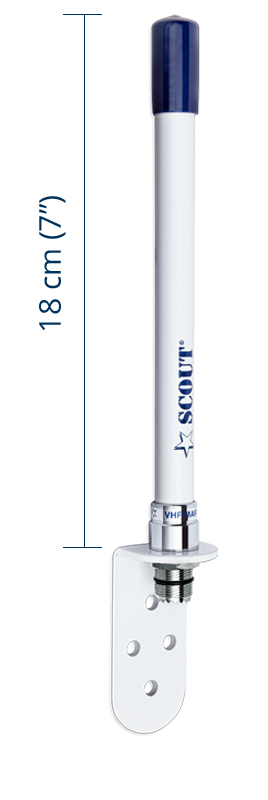

With only 18 cm length the KM-10 is the shortest VHF antenna of the range, and it is distinguished by its elegant look and glossy chrome finishes. Designed for fast and small boats, thanks to its versatility it is equally adaptable also to sailboats and medium sized boats. It is equipped with a 3mm thick coated aluminium bracket that makes the installation easy and stable, and gives the antenna a perfect stability even during fast navigation and rough sea.

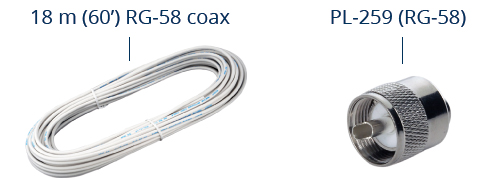

It is equipped with 18m RG-58 coaxial cable and two PL-259 male connectors.
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/4 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | Unity Gain |
| Max power input | 50 W |
| DC ground | No |
| Whip material | Fiberglass |
| Coaxial cable | 18 m (59′) RG 58 CU MIL |
| Mounting | Coated aluminium bracket |
| Length | 18 cm (7″) |
| Weight | 0,16 kilo |
| Code | PF AN NVHF00010 |
Content:
| 1 x Antenna |
| 1 x Coated aluminium bracket |
| 1 x RG-58 CU MIL coax cable 18 m (59′) |
| 2 x PL-259 (RG-58) male connector twist-on |
Download:
| SWR – Return loss testing | Link to document |
