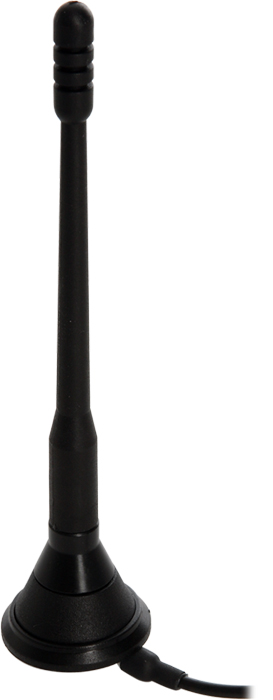

1/4 λ dual band Antenna 900/1.800 MHz
The KT-900/1.800 is a 1/4 λ antenna designed for several types of use: to receive the signal and to transmit it to other devices. Easy to install on a 8 mm ø hole. It’s a GSM dual band antenna, working at 900/1.800 MHz.
- 1/4 λ
- Dual band 900/1.800 MHz
Technical specifications:
| Frequency | 900/1.800 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/4 λ |
| V.S.W.R. | 1,5:1 or less |
| Polarization | Vertical |
| Gain | 0 dB |
| Cable | 50 cm RG 174 |
| Length | 14 cm |
| Mounting hole | d. 8 mm |
