KS-30


3 db AIS fiberglass antenna 1,0 m (3.3′) length



The Automatic Identification System (AIS) is an automated tracking system used on ships and by Vessel Traffic Services (VTS) for identifying and locating vessels by electronically exchanging data with other nearby ships and VTS stations. AIS transponders use two different frequencies, VHF maritime channels 87B (161.975 MHz) and 88B (162.025 MHz).



SCOUT has designed the KS-30 antenna to be tuned on the AIS frequencies.

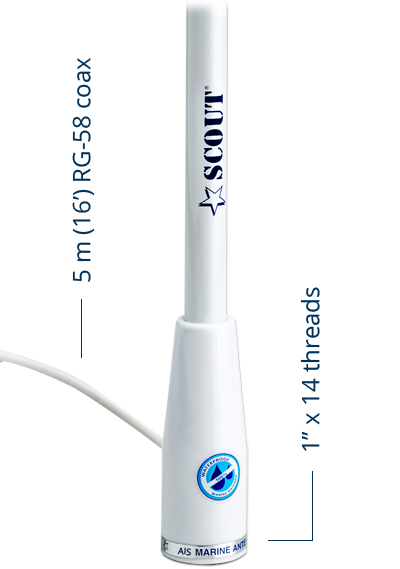

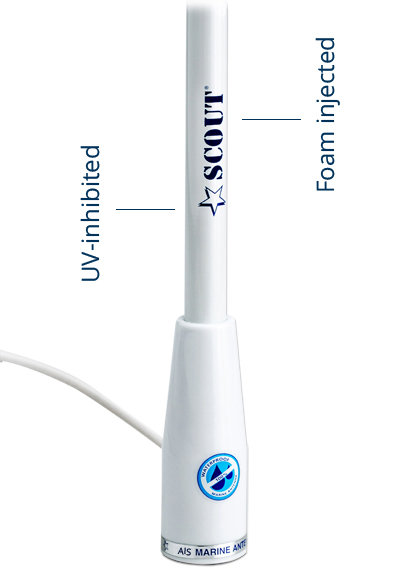

Extremely light and performing, the KS-30 is built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with high gloss anti-UV filter to prevent color deterioration. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.





  • AIS 161.975 MHz / 162,025 MHz
  • Foam injected – 100% WATERPROOF – IP69
  • Anti – UV high gloss finish
  • 5 m coaxial cable RG 58 CU MIL



Technical specifications:

 Frequency  161.975 MHz / 162,025 MHz
 Impedance  50 ohm
 Electrical length  1/2 λ
 V.S.W.R.  < 1,5:1
 Polarization  Vertical
 Gain  3 dB
 Max power input  50 W
 DC ground  Yes
 Whip material  Fiberglass
 Coaxial cable  5 m (16,4′) RG 58 CU MIL
 Mounting  1″ x 14 thread

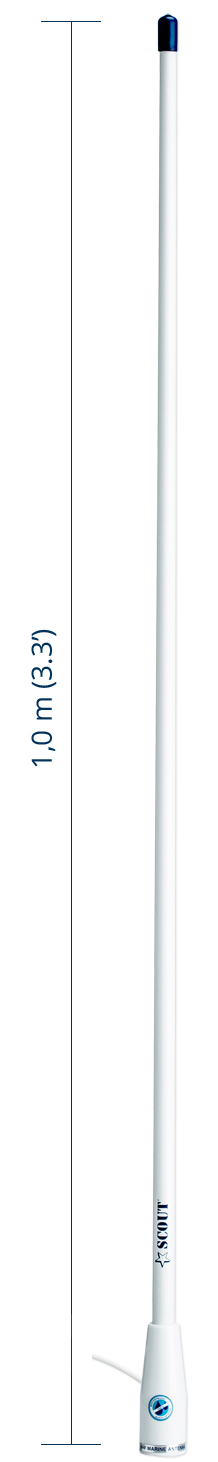

 Length  1,0 m (3.3′)
 Weight  0,39 kilo
 Code  PF AN NAIS001
